Mazda 3 Owners Manual: Outside Temperature Display

Mazda 3 Owners Manual: Outside Temperature Display

When the ignition is switched ON, the outside temperature is displayed.

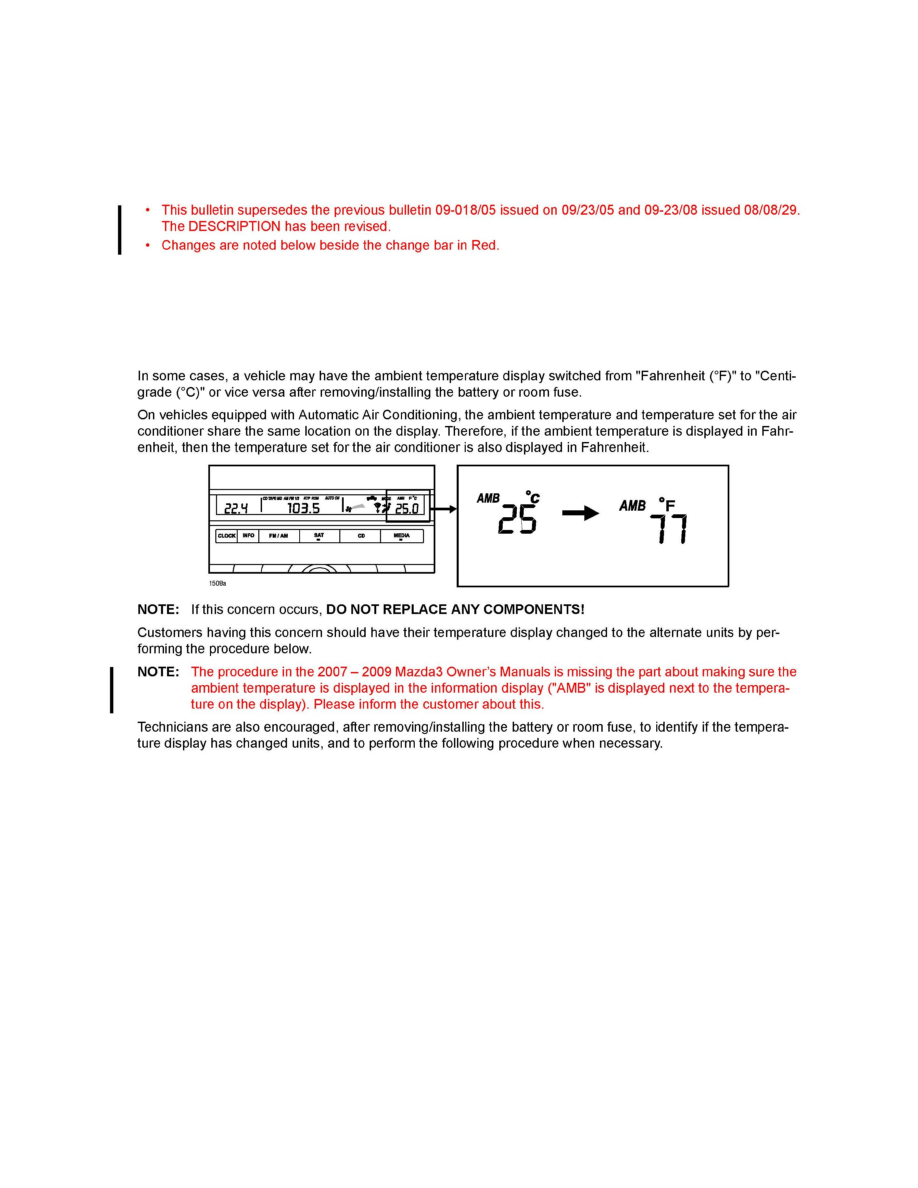

Mazda 3. Outside Temperature Display


NOTE Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

  • Significantly cold or hot temperatures.
  • Sudden changes in outside temperature.
  • The vehicle is parked.
  • The vehicle is driven at low speeds.

The outside temperature unit can be switched between Celsius and Fahrenheit using the following procedure.

  1. Press the INFO button with the ignition switched off and continue pressing the INFO button for 5 seconds or longer while switching the ignition ON. The outside temperature display flashes.
  2. Press the upor down
    part of the
    INFO switch to change the outside temperature unit.
  3. Press and hold the INFO button for 3 seconds or longer while the outside temperature display is flashing. The outside temperature display illuminates.
Dashboard Illumination
When the position lights are turned on with the ignition switched ON, the brightness of the instrument panel illumination is dimmed. NOTE When the position lights are turned on, the position lig ...
