Toyota Highlander Owners Manual: Engine immobilizer system

The vehicle�s keys have built-in transponder chips that prevent the engine from starting if a key has not been previously registered in the vehicle�s on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

This system is designed to help prevent vehicle theft but does not guarantee absolute security against all vehicle thefts.

Vehicles without a smart key system: the indicator light flashes after the key has been removed from the engine switch to indicate that the system is operating.

The indicator light stops flashing after the registered key has been inserted into the engine switch to indicate that the system has been canceled.

Toyota Highlander. Engine immobilizer system

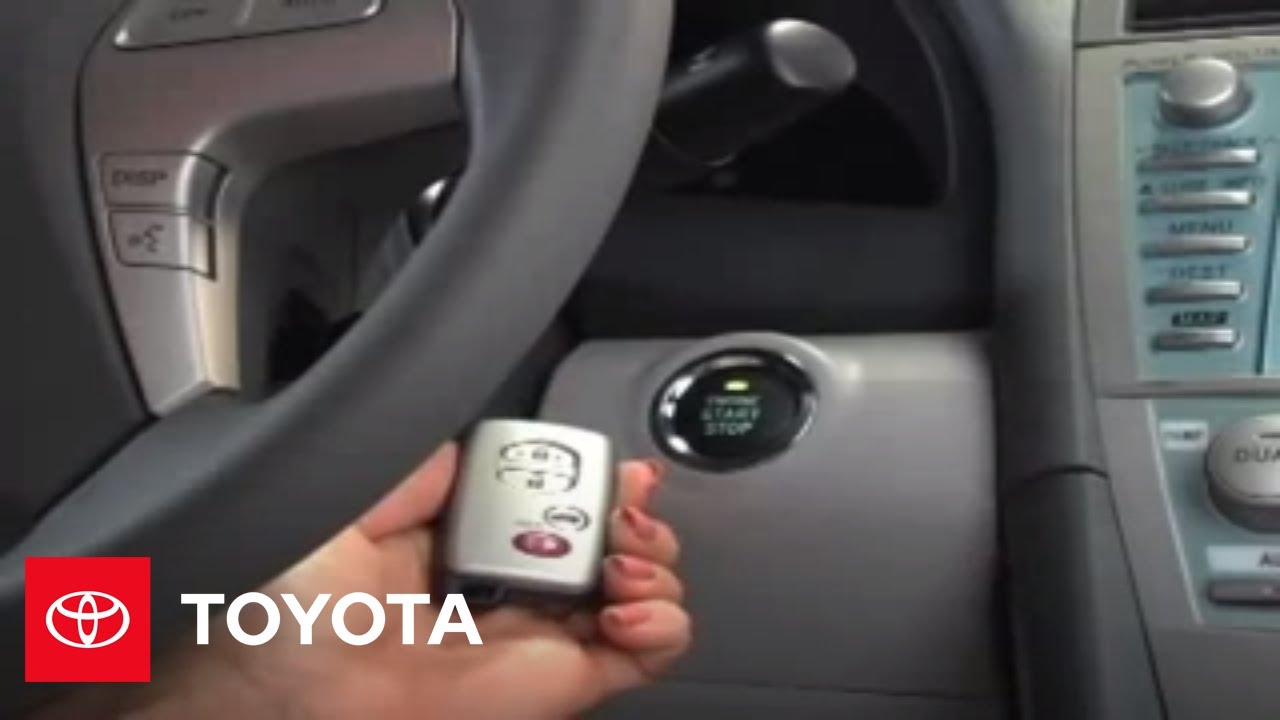

Vehicles with a smart key system: the indicator light flashes after the engine switch has been turned off to indicate that the system is operating.

The indicator light stops flashing after the engine switch has been turned to accessory or ignition on mode to indicate that the system has been canceled.

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

Conditions that may cause the system to malfunction

  • if the grip portion of the key is in contact with a metallic object
  • if the key is in close proximity to or touching a key to the security system (key with a built-in transponder chip) of another vehicle

Certification for the engine immobilizer system

  •  for vehicles sold in the u.S.A.

Fcc id: wrkri-44bty fcc id: ni4tmimb-3 this device complies with part 15 of the fcc rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Fcc warning changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • for vehicles sold in canada

this device complies with industry canada licence-exempt rss standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Notice


To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.
